GOUSHOU TECHNOLOG

Full Range of DC Fan Products

DC Axial FAN

  1. Size: 20*20mm ~ 280*280mm
  2. Input Voltage: DC 5V / 12V / 24V / 48V
  3. Signal & Control: RD signal, FG signal, PWM Control
  4. Motor: DC brushless Motor
  5. Safety Approvals: UL, CUL, TUV, CE, RoHS

Production of Customized fan would be possible. (Wire length、Connector, Heat shrink tube...etc.) Please kindly contact with us.

Picture Description Dimensions Maximum Airflow
20x20x10 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V
20X20X10mm 0.787x0.787x0.393inch 0.73CFM
25X25X10 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V/24V
25X25X10mm 0.984X0.984X0.393inch 2.41CFM

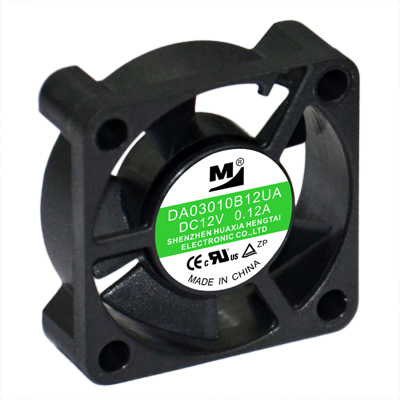

30X30X10 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V
30X30X10mm 1.181X1.181X0.393inch 4.24CFM
35X35X10 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V/24V
35X35X10mm 1.377X1.377X0.393inch 6.30CFM
38X38X28 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V/24V
38X38X28mm 1.496X1.496X1.102inch 11.8CFM
38X38X28 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V/24V
38X38X28mm 1.496X1.496X1.102inch 19.16CFM
40X40X10 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V/24V
40X40X10mm 1.574X1.574X0.393inch 9.05CFM
40X40X20 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V/24V
40X40X20mm 1.574X1.574X0.787inch 11.6CFM
40X40X28 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V/24V
40X40X28mm 1.574X1.574X1.102inch 13.9CFM
40X40X28 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V/24V
40X40X28mm 1.574X1.574X1.102inch 24.8CFM
50X50X15 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V/24V
50X50X15mm 1.968X1.968X0.590inch 15.8CFM
60X60X10 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V
60X60X10mm 1.968X1.968X0.393inch 24.3CFM
60X60X15 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V
60X60X15mm 1.968X1.968X0.590inch 26.5CFM

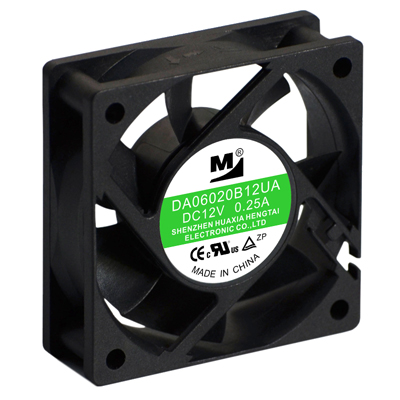

60X60X20 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V
60X60X20mm 1.968X1.968X0.787inch 19.6CFM
60X60X25 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
60X60X25mm 1.968X1.968X0.984inch 34.8CFM
60X60X38 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
60X60X38mm 2.362X2.362X1.496inch 67.3CFM
70X70X15 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V
70X70X15mm 2.755X2.755X0.590inch 33.5CFM
70X70X25 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
70X70X25mm 2.755X2.755X0.984inch 54.8CFM
80X80X15 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
80X80X15mm 3.149X3.149X0.590inch 53.5CFM
80X80X20 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
80X80X20mm 3.149X3.149X0.787inch 51.2CFM
80X80X25 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
80X80X25mm 3.149X3.149X0.984inch 76CFM
80X80X38 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
80X80X38mm 3.149X3.149X1.496inch 130cfm
92X92X25 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
92X92X25mm 3.622X3.622X0.984inch 81CFM

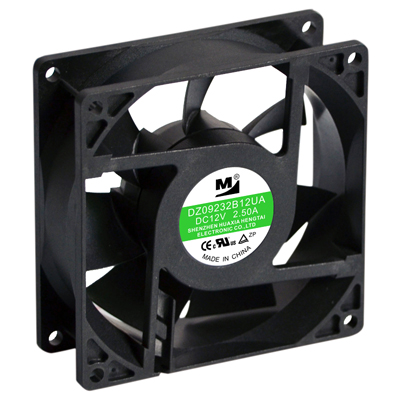

92X92X38 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
92X92X38mm 3.622X3.622X1.102inch 139CFM

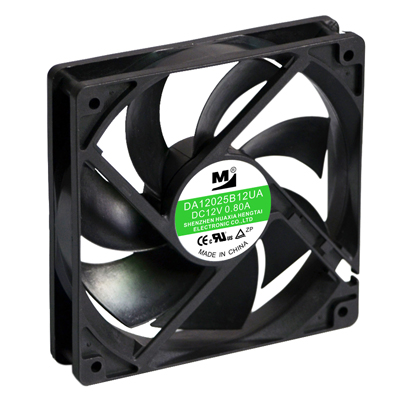

120X120X25 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V
120X120X25mm 4.724X4.724X0.984inch 125CFM
120X120X38 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
120X120X38mm 4.724X4.724X1.496inch 178CFM
120X120X38 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC VOLTAGE:12V/24V/48V
120X120X38mm 4.724X4.724X1.496inch 222CFM
140X140X25 DC Fan DC AXIAL FAN
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V
140X140X25mm 5.511X5.511X0.984inch 98CFM
150X172X51 DC Fan DC AXIAL FAN
IMPELLER:PLASTIC
FRAME:AL DIE CASTING VOLTAGE:12V/24V/48V
150X172X51mm 5.905X6.771X2.007inch 407CFM
225X225X80 DC Fan DC AXIAL FAN
IMPELLER:IRON
FRAME:AL DIE CASTING
VOLTAGE:12V/24V/48V
225X225X80cm 8.858X8.858X3.149inch 534CFM
254x89 DC Fan DC AXIAL FAN
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
VOLTAGE:24V/48V
Ø254x89mm Ø10x3.503inch 825CFM
280X280X80 DC Fan DC AXIAL FAN
IMPELLER:IRON
FRAME:AL DIE CASTING
VOLTAGE:24V/48V
280X280X80mm 11.023X11.023X3.149inch 1200CFM



Full range of DC Blower

  1. Fan Size: 50*50mm ~ 150*138mm DC Blower
  2. Signal & Control: RD signal, FG signal, PWM Control
  3. Motor: DC brushless Motor
  4. Safety Approvals: UL, CUL, TUV, CE, RoHS

Production of Customized fan would be possible. (Wire length、Connector, Heat shrink tube...etc.) Please kindly contact with us.

Picture Description Dimensions Maximum Airflow
133x80 DC BLOWER DC BLOWER
IMPELLER/FRAME:PLASTIC
VOLTAGE:5V/12V
50x50x15mm 1.968x1.968x0.590inch 4.4CFM
60x60x15 DC BLOWER

DC BLOWER
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V

60x60x15mm 1.968x1.968x0.591inch 4.6CFM
75x75x30 DC BLOWER DC BLOWER
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
75x75x30mm 2.952x2.952x1.181inch 22.5CFM
97x97x33 DC BLOWER DC BLOWER
IMPELLER/FRAME:PLASTIC
VOLTAGE:12V/24V/48V
97x97x33mm 3.818x3.818x1.299inch 45CFM
120x120x32 DC BLOWER DC BLOWER
IMPELLER/FRAME: PLASTIC
VOLTAGE:12V
120x120x32mm 4.724x4.724x1.259inch 32.39CFM



Full range of DC Backwards Curved Impeller

  1. Size: Ø133mm~Ø310mm
  2. Input Voltage: DC 24V / 48V
  3. Motor: DC brushless Motor
  4. Safety Approvals: UL, CUL, TUV, CE, RoHS
Picture Description Dimensions Maximum Airflow
133x91 DC Backwards Curved Impeller DC Impeller
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
VOLTAGE:24V/48V
Ø133X91mm Ø5.236X3.622inch 247CFM
175X69 DC Backwards Curved Impeller

DC Impeller
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
VOLTAGE:24V/48V

Ø175X69mm Ø6.889X2.716inch 408CFM
200X80 DC Backwards Curved Impeller DC Impeller
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
VOLTAGE:24V/48V
Ø200X80mm Ø7.874X3.149inch 450CFM
220X71 DC Backwards Curved Impeller DC Impeller
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
VOLTAGE:24V/48V
Ø220X71mm Ø8.661X2.795inch 573CFM
225X99 DC Backwards Curved Impeller DC Impeller
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
VOLTAGE:24V/48V
Ø225X99mm Ø8.858X3.897inch 734CFM
280X105 DC Backwards Curved Impeller DC Impeller
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
VOLTAGE:24V/48V
Ø280X105m Ø11.023X4.330inch 853CFM
310X150 DC Backwards Curved Impeller DC Impeller
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
VOLTAGE:24V/48V
Ø310X150mm Ø12.204X5.905inch 1077CFM
