GOUSHOU TECHNOLOG

Full Range of AC Fan Products

AC Axial FAN

  1. Size: 80*80mm ~ 280*280mm
  2. Input Voltage: AC 100V~240V,50/60 Hz
  3. Connection type: terminal push-on type or Lead wire type
  4. Motor: Single phase induction capacitor motor,thermally protected
  5. Safety Approvals: UL, CUL, TUV, CE, RoHS
Picture Description Dimensions Maximum Airflow
120x120x38 AC Fan TYPE:AC Axial FAN
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
INPUT:100~240, 50/60Hz
120x120x38 mm 4.72x4.72x1.5 inch 113 CFM
127x127x38 AC Fan TYPE:AC Axial FAN
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
INPUT:100~240, 50/60Hz
127x127x38 mm 5x5x1.5 inch 125 CFM
172x150x51 AC Fan

TYPE:AC Axial FAN
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
INPUT:100~240, 50/60Hz

172x150x51 mm 6.77x5.91x2.01 inch 295 CFM
176x176x89 AC Fan

TYPE:AC Axial FAN
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
INPUT:100~240, 50/60Hz

176x176x89 mm 6.93x6.93x3.5 inch 420 CFM
205x205x72 AC Fan

TYPE:AC Axial FAN
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
INPUT:100~240, 50/60Hz

205x205x72 mm 8.07x8.07x2.83 inch 710 CFM
254x89 AC Fan

TYPE:AC Axial FAN
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
INPUT:100~240, 50/60Hz

Ø254x89 mm Ø10x3.5 inch 730 CFM
280x280x89 AC Fan

TYPE:AC Axial FAN
IMPELLER:PLASTIC
FRAME:AL DIE CASTING
INPUT:100~240, 50/60Hz

280x280x89 mm 11.02x11.02x3.5 inch 1480 CFM



AC Backwards Curved Impeller

  1. Size: Ø133mm~Ø250mm
  2. Input Voltage: AC 100V~240V,50/60 Hz
  3. Connection type: Lead wire type only
  4. Motor: Single phase induction capacitor motor,thermally protected
  5. Safety Approvals: UL, CUL, TUV, CE, RoHS
Picture Description Dimensions Maximum Airflow
133x80 AC Fan TYPE:AC Backwards
Curved Impeller
IMPELLER:PLASTIC
INPUT:100~240, 50/60Hz
Ø133x80 mm Ø5.24x3.15 inch 165 CFM
170x65 AC Fan

TYPE:AC Backwards
Curved Impeller
IMPELLER:PLASTIC
INPUT:100~240, 50/60Hz

Ø170x65 mm Ø6.70x2.56 inch 240 CFM
190x67 AC Fan

TYPE:AC Backwards
Curved Impeller
IMPELLER:PLASTIC
INPUT:100~240, 50/60Hz

Ø190x67 mm Ø7.48x2.64 inch 230 CFM
190x72 AC Fan

TYPE:AC Backwards
Curved Impeller
IMPELLER:PLASTIC
INPUT:100~240, 50/60Hz

Ø190x72 mm Ø7.48x2.83 inch 275 CFM
220x76 AC Fan

TYPE:AC Backwards
Curved Impeller
IMPELLER:PLASTIC
INPUT:100~240, 50/60Hz

Ø220x76 mm Ø8.66x2.99 inch 550 CFM

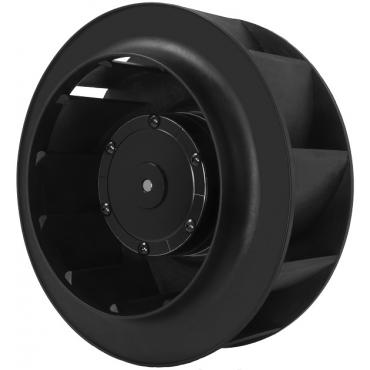

220x101 AC Fan

TYPE:AC Backwards
Curved Impeller
IMPELLER:PLASTIC
INPUT:100~240, 50/60Hz

Ø220x101 mm Ø8.66x3.98 inch 610 CFM
250x76 AC Fan

TYPE:AC Backwards
Curved Impeller
IMPELLER:PLASTIC
INPUT:100~240, 50/60Hz

Ø250x76 mm Ø9.84x2.99 inch 610 CFM
